BETA BREIF

  • BETA relay has been a relay manufacturer almost 50 years (El relé BETA ha sido un fabricante de relés durante casi 50 años.)
  • BETA relay has worked with world famous brand as their OEM/ ODM over 25 years. (Relé BETA ha trabajado con marca de fama mundial como su OEM / ODM más de 25 años)
  • Our insistence on quality and service has earned beta relay a good reputation among our users and clients.(Nuestra insistencia en la calidad y el servicio ha ganado relé beta de una buena reputación entre nuestros usuarios y clientes.)
  • We are specialized in industrial relay (BTA3, BTA2, BTA5, BTA7), general purpose relay (BLY5, BMY5, BTA6), miniature relay (BLY5, BMY5).Estamos especializados en el relé industrial (BTA3,BTA2, BTA5, BTA7), relé de propósito general (BLY5, BMY5, BTA6), relé miniatura (BLY5, BMY5).
  • See more about BETA relay, please click “ABOUT US”. (Ver más sobre relé BETA, por favor haga clic en "Sobre nosotros".)

FEATURES

  • Plug-in style relay.
  • Quick connect receptacles or direct soldering. P.C.B. terminals arealso acceptable.
  • Large capacity of 25A contact rating.
  • SPDT, DPDT, 3PDT contact arrangement.
  • BTA3 general purpose relays are available in a wide choice of AC or DCvoltage with indicator lamp and/or manual push button.
  • E115915

LINEUP

  • STANDARD COIL POLARITY
Type Contact form Plug-in Terminals
假日價Standard With LED With LED and Manual button
Coil insulation
Class B		 平日價SPDT 假日價BTA3-1C-B-S-C BTA3-1C-B-S-C-L BTA3-1C-B-S-C-LM
平日價DPDT BTA3-2C-B-S-C BTA3-2C-B-S-C-L BTA3-2C-B-S-C-LM
平日價3PDT BTA3-3C-B-S-C BTA3-3C-B-S-C-L BTA3-3C-B-S-C-LM
平日價SPNC BTA3-1B-B-S-C BTA3-1B-B-S-C-L BTA3-1B-B-S-C-LM
平日價DPNC BTA3-2B-B-S-C BTA3-2B-B-S-C-L BTA3-2B-B-S-C-LM
 3PNC BTA3-3B-B-S-C BTA3-3B-B-S-C-L BTA3-3B-B-S-C-LM
SPNO BTA3-1A-B-S-C BTA3-1A-B-S-C-L BTA3-1A-B-S-C-LM
DPNO BTA3-2A-B-S-C BTA3-2A-B-S-C-L BTA3-2A-B-S-C-LM
3PNO BTA3-3A-B-S-C BTA3-3A-B-S-C-L BTA3-3A-B-S-C-LM
Coil insulation
Class F 		 平日價SPDT 假日價BTA3-1C-B-S-C-F BTA3-1C-B-S-C-L-F BTA3-1C-B-S-C-LM-F
平日價DPDT BTA3-2C-B-S-C-F BTA3-2C-B-S-C-L-F BTA3-2C-B-S-C-LM-F
平日價3PDT BTA3-3C-B-S-C-F BTA3-3C-B-S-C-L-F BTA3-3C-B-S-C-LM-F
平日價SPNC BTA3-1B-B-S-C-F BTA3-1B-B-S-C-L-F BTA3-1B-B-S-C-LM-F
平日價DPNC BTA3-2B-B-S-C-F BTA3-2B-B-S-C-L-F BTA3-2B-B-S-C-LM-F
 3PNC BTA3-3B-B-S-C-F BTA3-3B-B-S-C-L-F BTA3-3B-B-S-C-LM-F
SPNO BTA3-1A-B-S-C-F BTA3-1A-B-S-C-L-F BTA3-1A-B-S-C-LM-F
DPNO BTA3-2A-B-S-C-F BTA3-2A-B-S-C-L-F BTA3-2A-B-S-C-LM-F
3PNO BTA3-3A-B-S-C-F BTA3-3A-B-S-C-L-F BTA3-3A-B-S-C-LM-F
Note:
  1. The standard contact material AgCdO can be replaced by AGSNO2 gold flashed by adding a letter B in its product name, ex.BTA2-1C-B-S2-CBlank: AGCDO B: AGSNO2 gold flashed

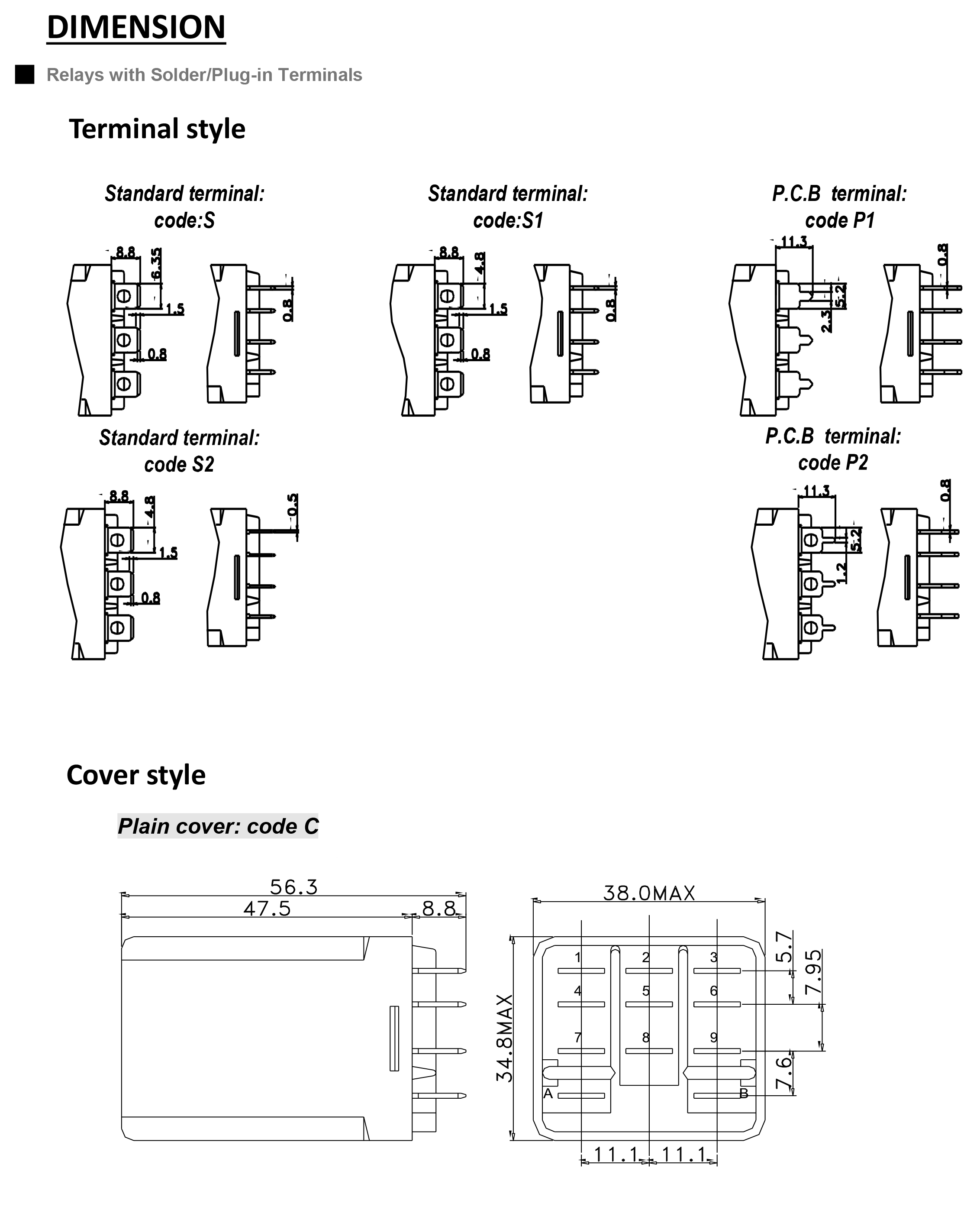

  2. You can choose terminal style by switching the codes. For instance : BTA2-1C-B-S-C(6.35X0.8) can be changed toBTA2-1C-B-S1-C(4.8X0.8)S: 6.35X0.8 S1: 4.8X0.8 S2: 4.8X0.5 P1: 2.3X0.8 P2: 1.2X0.8 (See Terminal Style figure below)

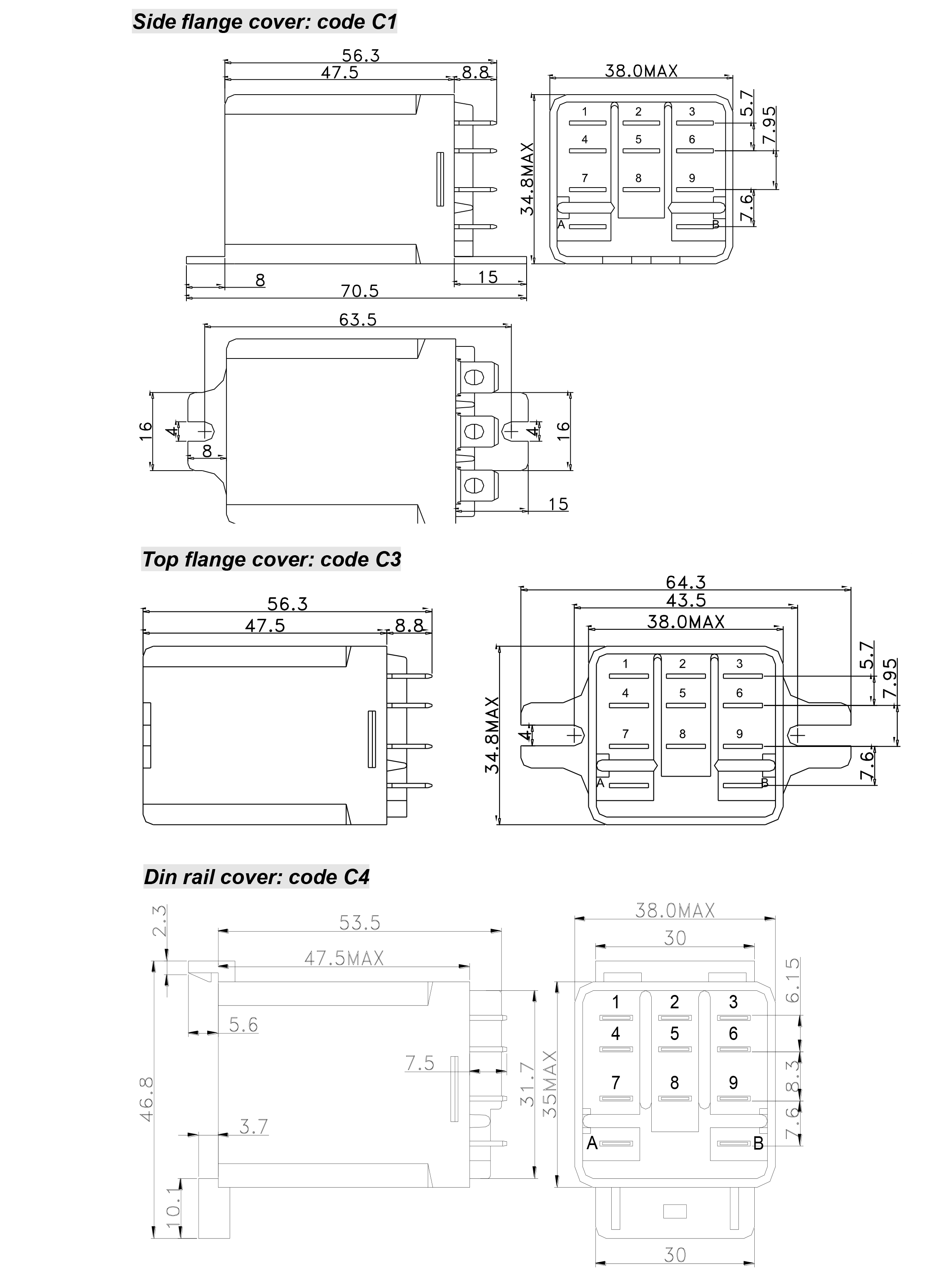

  3. You can choose cover style by switching the codes. For instance : BTA2-1C-B-S2-C( plain cove) can be changed toBTA2-1C-F-S2-C1(side flange cover)C: plain cover C1: side flange cover C3: top flange cover C4: din rail cover
  4. Description of coil insulation Class：B: insulation temperature 130℃(leave blank behind voltage)， F: insulation temperature 155℃（add ”F” behind voltage, refer to above chart）

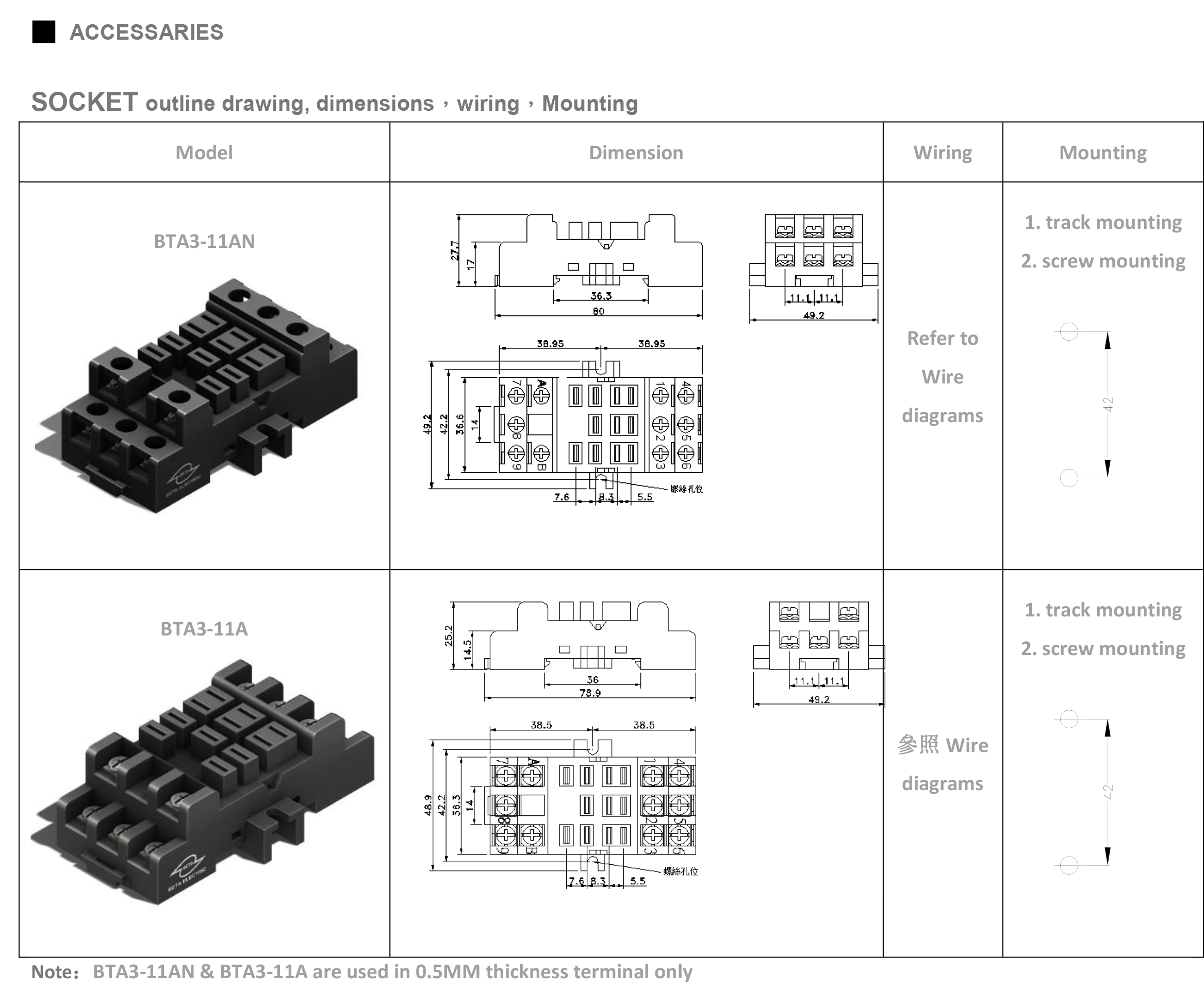

  • SOCKETS & ACCESSARIES
Poles Front-mounting Socket
平日價1C/2C/3C 假日價BTA3-11A
假日價BTA3-11AN
Note: The socket in the table is used in the 0.5MM thickness of S2 terminal only.

SPECIFICATIONS

  • COIL RATINGS
Rated voltage Rated current Coil resistance (Ω) Must operate voltage  Must release voltage  Max. voltage  Power consumption (approx.)
假日價50 Hz 60  Hz % of rated voltage
房型AC
(1C,2C)		 平日價6V 595 550 4.43 85 30 110 3.0VA
平日價12V 272 241 17.7
平日價24V 假日價146.8 127.2 72
110V  31.2 27.5 1580
120V  37.7 31 1630
 220V 23.5 19.7 5850
平日價240V 15.4 12.8  7200
AC
(3C)		 6V 734 616 3.8 3.4VA
12V 454 365 15
24V 142 124 60
48V 77.9 64.9 240
120V 37.4 31.2 1300
240V 18.7 14.8 4300
DC
(1C,2C)		  6V 180.5 29.5 75 10 1.2W
 12V 95.5 120
 24V  50 472
平日價48V 26.7 1800
 110V 13.2 10000
120V 13.2 10000
DC
(3C)		 6V 278 21.3 1.5W
12V 147 85
24V 70.8 340
48V 33.6 1360
110V 12.9 8500
120V 12.9 8500
Note:
  1. The coil resistance is measured at a coil temperature of 25℃ and 35%-70% of humidity.
  2. The operating parameter is measured at a coil temperature of 25℃ indicated in the percentage of the rated voltages.
  3. The coil rated current is measured as the real current consumption under the rated voltages.
  • CONTACT RATINGS
Item 1C/2C 3C
房型Resistive load(CosΦ=1) 25A 300VAC
13A 28VDC		 20A 277VAC
13A 28VDC
房型Motor 平日價1/3HP，120VAC
1-1/2HP，240VAC		 3/4HP 120VAC
1HP 240VAC
房型Max. switching voltage 平日價250VAC 125VDC
房型Max. switching current 25A
房型Max. switching power 3120VA 364W 5540VA 364W
  • CHARACTERISTICS
Item All Relays
房型Contact resistance 50mΩ Maximum.
房型Operate time 平日價AC: 30mS Maximum, DC:20mS Maximum
房型Release time 平日價AC: 25mS Maximum, DC: 15mS Maximum
房型Max. operating frequency 平日價Mechanical: 18,000 operations/h
Electrical: 1,800 operations/h (under rated load)
Insulation resistance 1000MΩ Minimum. At 500VDC.
Dielectric strength  Between open contact: 1000 VAC for 1 minute.
Between contact and coil: 1500VAC for 1 minute.
Between live parts and ground: 1500VAC for 1 minute.
Vibration resistance Destruction: 10 to 55 Hz, 0.75-mmsingle amplitude(1.5-mm double amplitude)
Malfunction: 10 to 55 Hz, 0. 5-mmsingle amplitude(1.0-mm double amplitude)
Shock resistance Destruction: 1,000 m/s²(approx. 100G)
Malfunction: 1,00 m/s² (approx. 10G)
房型Endurance 平日價Mechanical: 10,000,000 operations min (at 18,000 operations/h)
Electrical: 100,000 operations min (at 1,800 operations/h under rated load)
Ambient temperature Operating: -30℃ to +50℃(AC); -30℃ to +65℃(DC)
Ambient humidity Operating: 5% to 85%
Weight 88g
  • SOCKETS SPECIFICATION
Pole Model Carry current Dielectric withstand voltage Insulation resistance
房型1C/2C/3C 平日價BTA3-11A 25A 1800VAC,1min 1000MΩ Minimum. At 500VDC.
平日價BTA3-11AN 25A 1800VAC,1min  1000MΩ Minimum. At 500VDC.
